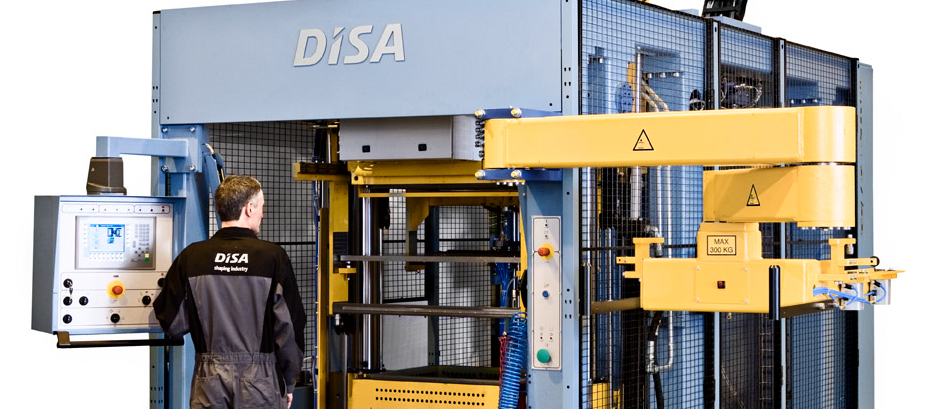

Horizontal flaskeless moulding

How does horizontal flaskeless moulding work?

Matchplate moulding employs a pattern plate with patterns mounted on both sides to create flaskless moulds that are horizontally parted and poured. Its flexibility suits lower production volumes.

Benefits of the horizontal flaskeless moulding process

The matchplate process offers greater speed and mold accuracy compared to older horizontal techniques like jolt squeeze
Matchplate molding also offers very fast and simple pattern plate changes, making it perfect for short to medium-run casting production. DISA’s Quick Matchplate Changer (QMC) can change matchplates within two minutes
Patterns designed for horizontal molding machines can usually be transferred to matchplate molding machines with little effort. Likewise, matchplate patterns designed for one brand of machine can usually be employed on a DISA MATCH with minor modifications or by using a simple adapter frame

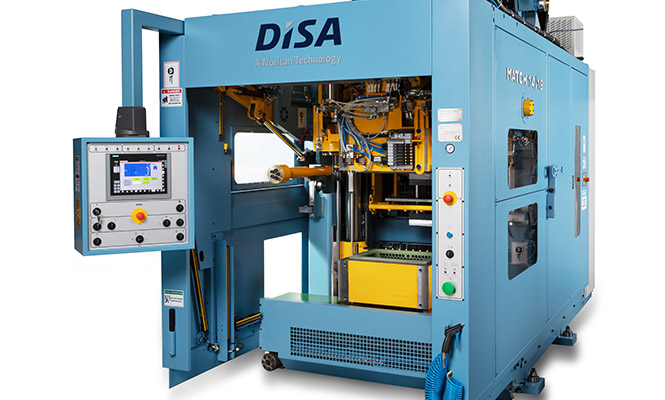

DISA MATCH

Green sand moulding machines are available in six mould sizes and reach speeds of up to 210 uncored moulds /hour.

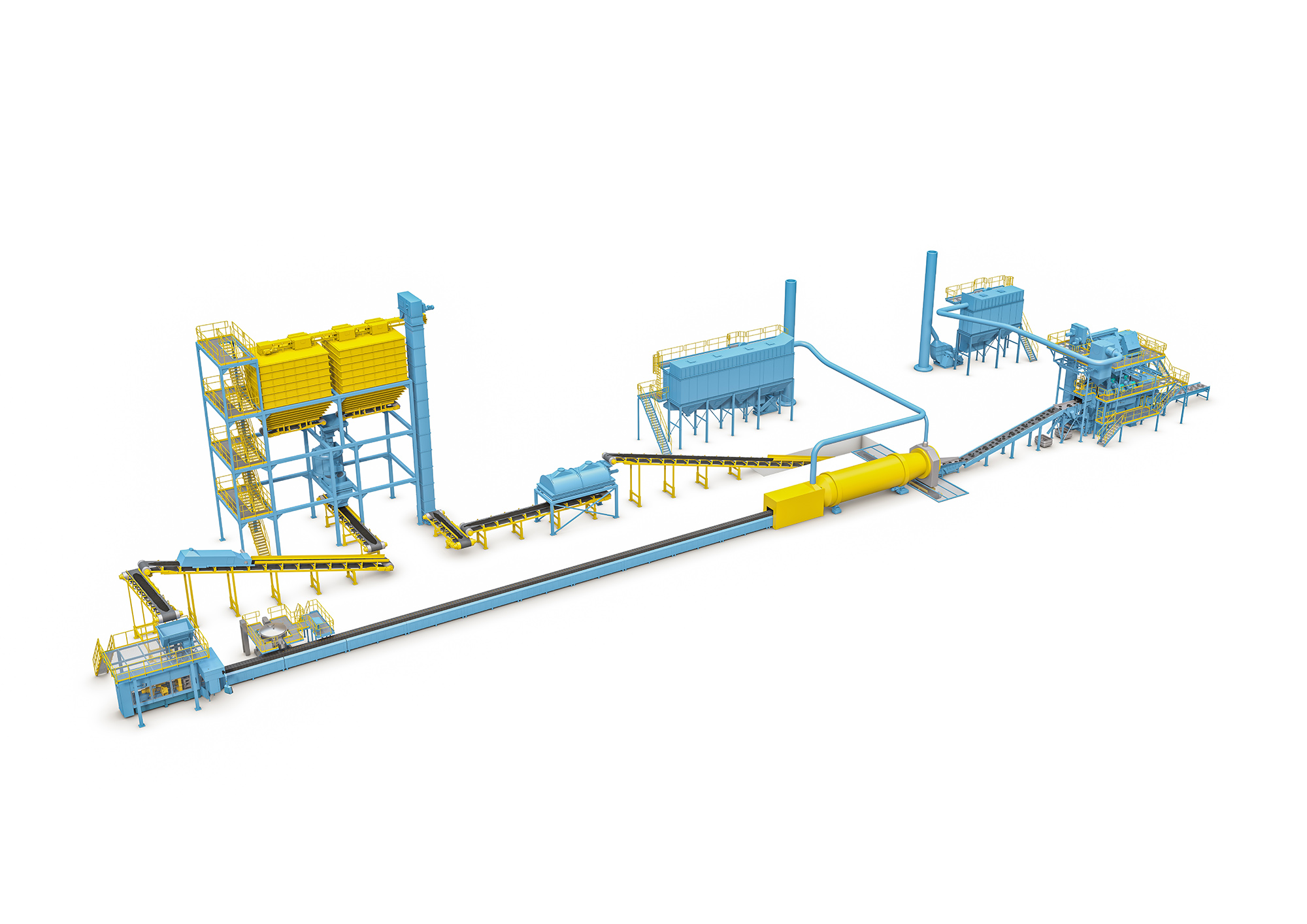

DISA Complete Foundry

As a complete foundry partner and global market leader of moulding equipment, we have the ability to turn an empty field or existing building into a complete, modern foundry.

Automation

Industrial automation in foundries offers numerous benefits that can significantly enhance manufacturing and production processes.
